The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please call to speak to one of our experts.



Summary


Finish: Original finish.

Body Material: Alder

Neck Material: Maple

Fingerboard Material: Brazilian Rosewood

Neck Profile: C

Neck Thickness (IN): 1st - 0.80" 12th - 0.96"

Fingerboard Radius: 7.25"

Nut Width: 1-5/8"

Scale Length: 24"

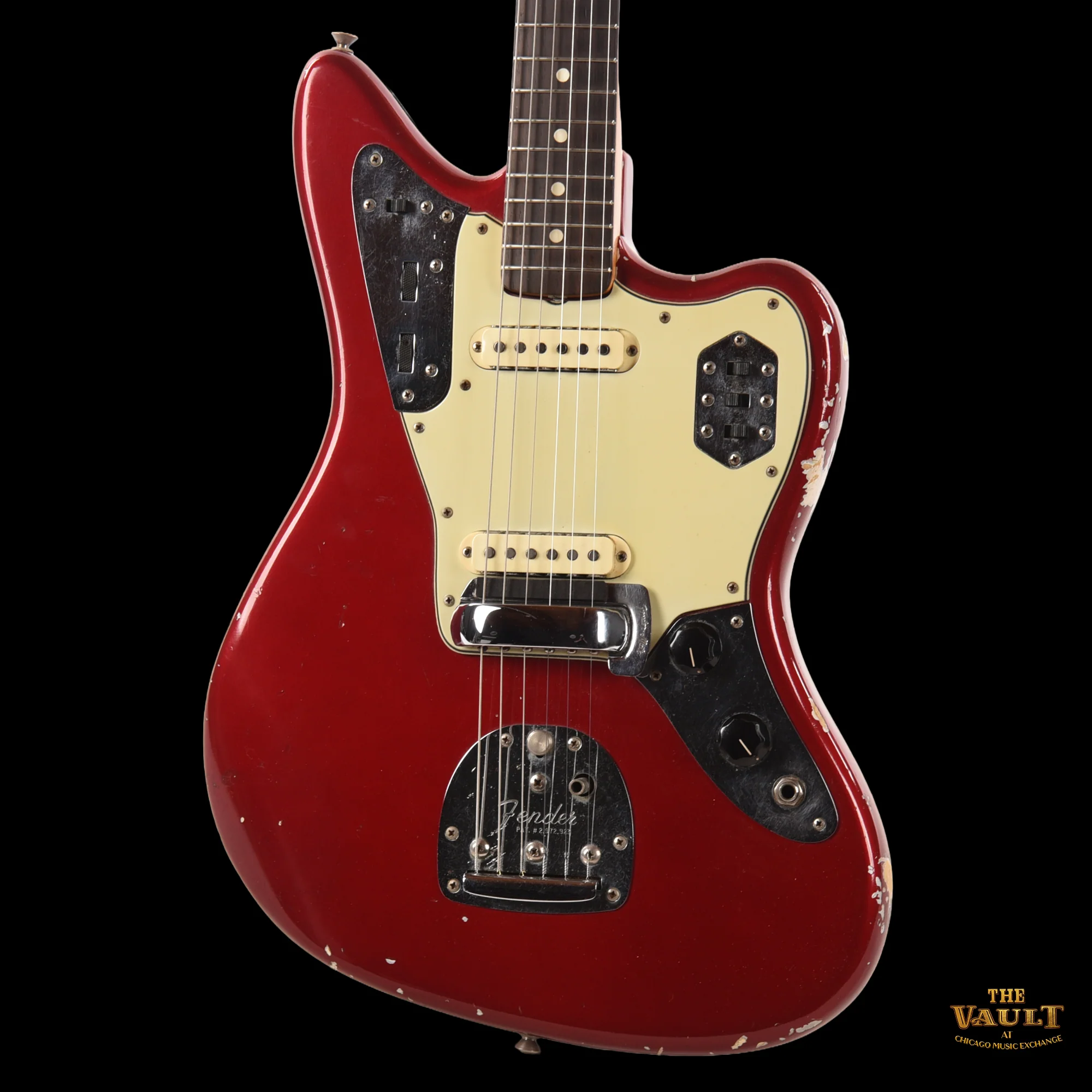

Electronics: Original electronics. The guitar has two single coils, two pickup toggle switches, a phase flip switch, a volume pot, a tone pot, and a rhythm circuit with volume and tone wheels. The pot codes date to 1964.

Pickup Measurements: neck - 5.6 kΩ, bridge - 5.8 kΩ

Hardware: The neck has been refretted and the nut has been replaced. The foam has been replaced on the mute.

Weight: 8lbs 6oz

Modifications / Repairs: The neck has been refretted and the nut has been replaced. The foam has been replaced on the mute.

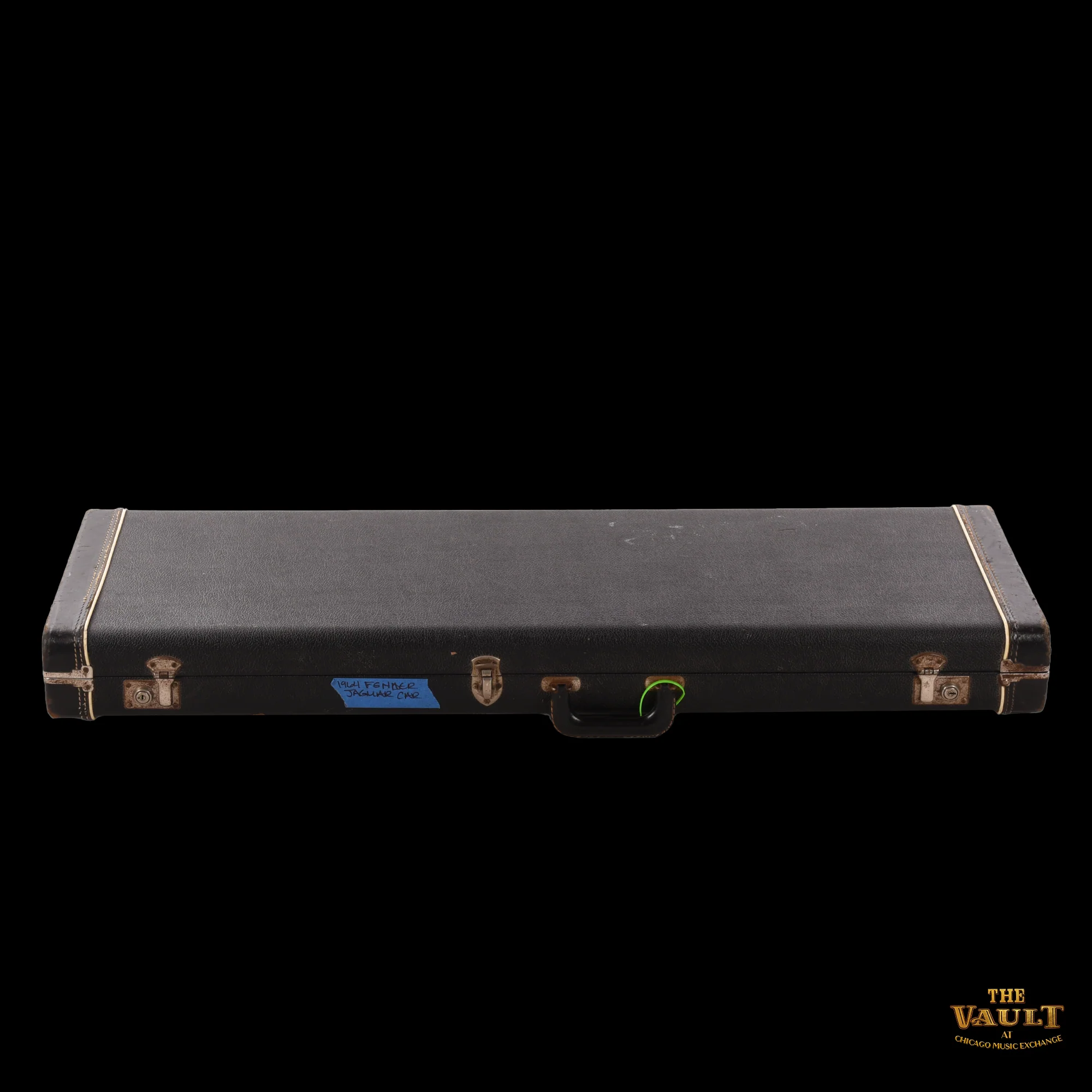

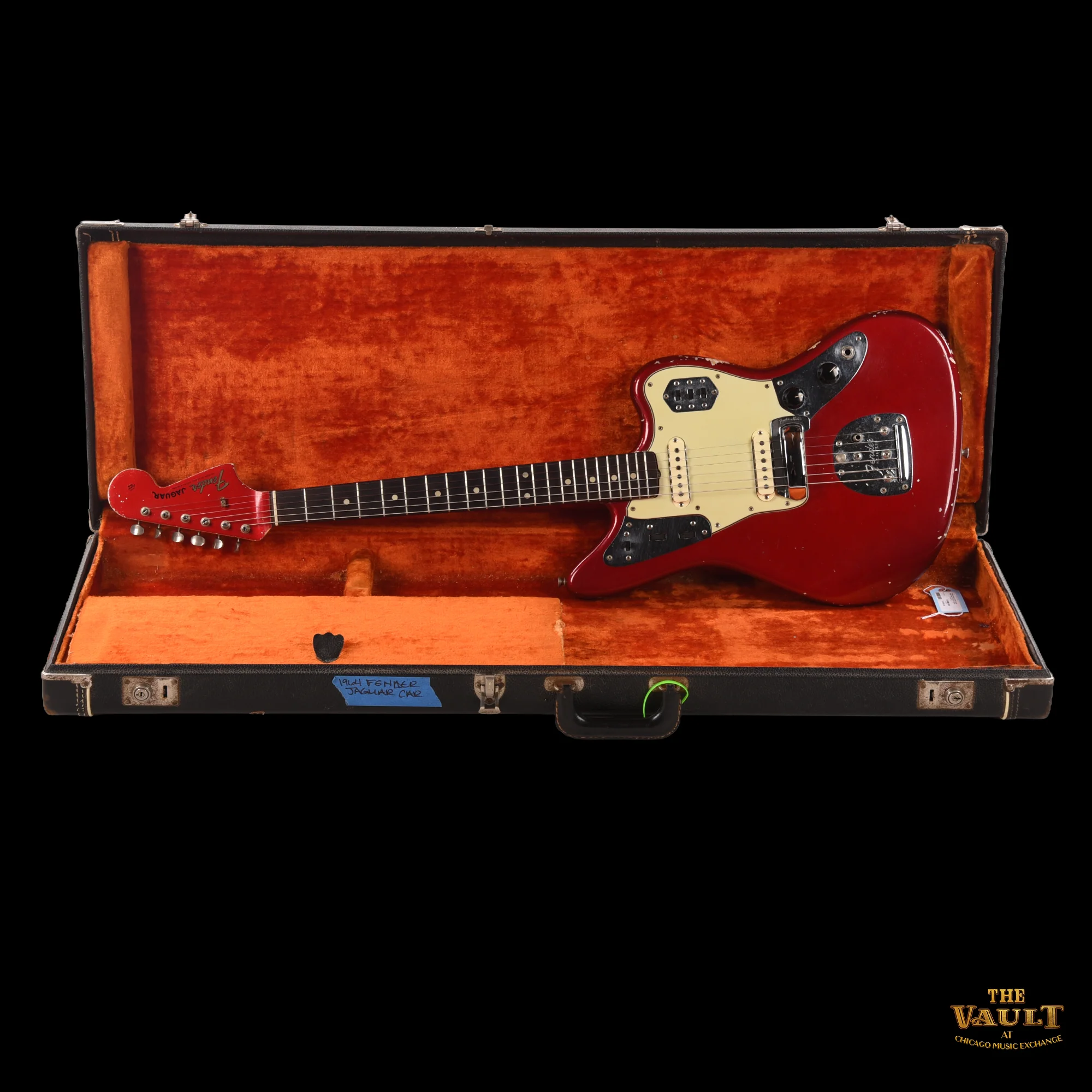

Case Details: Original hard shell case

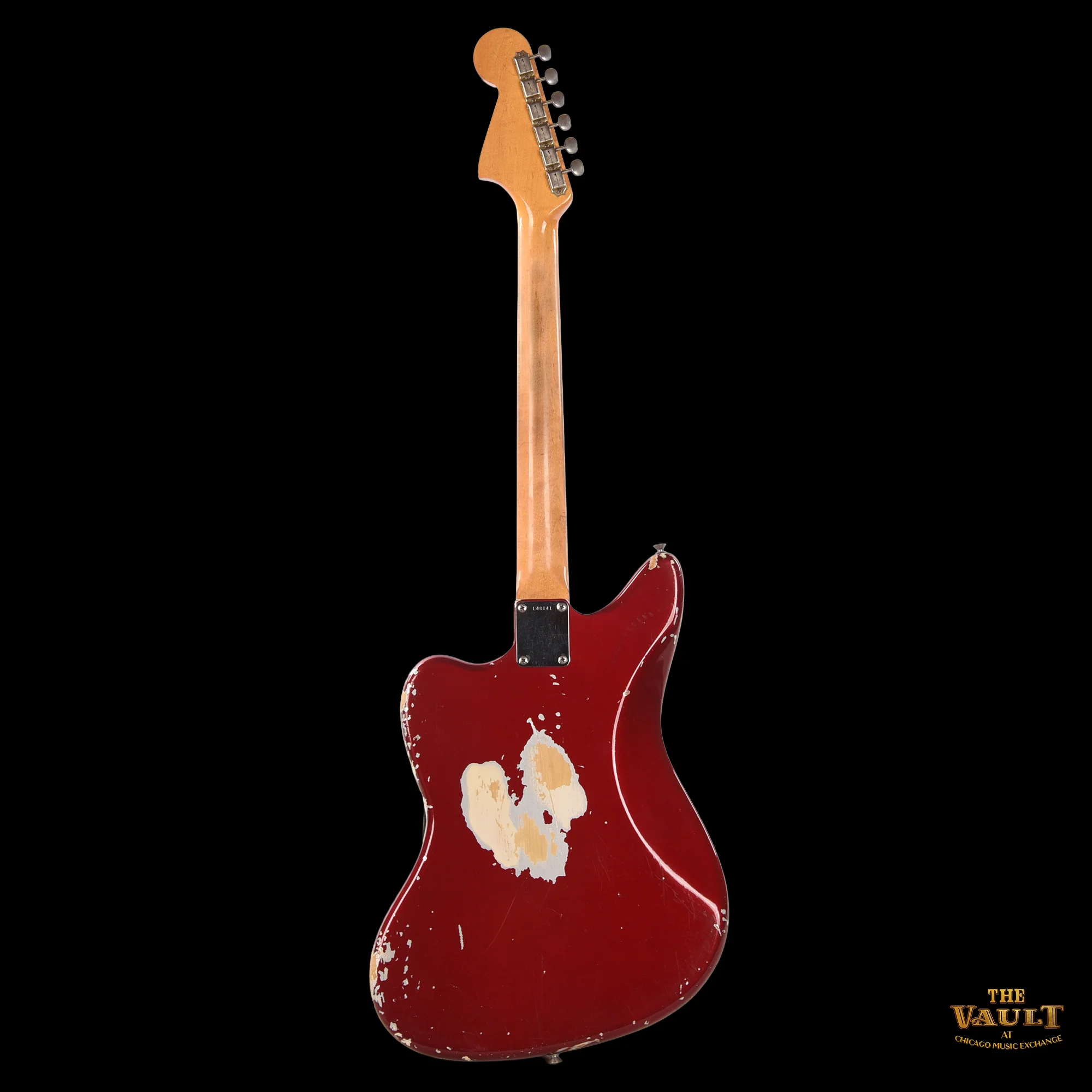

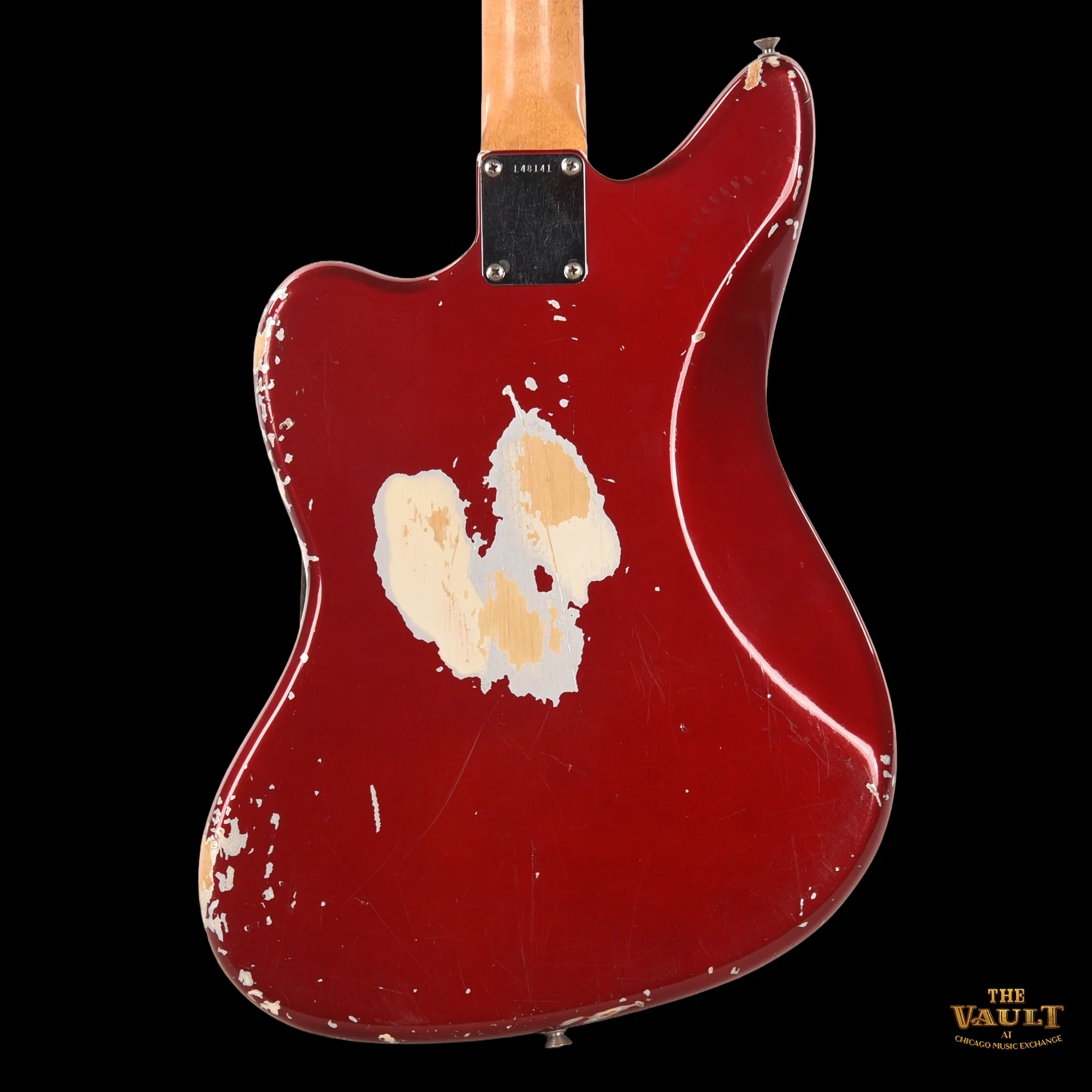

Cosmetic Condition: This vintage Fender guitar has aged well and is in good condition. The finish is glossy with checking, small dings and chips, and some shallow dents throughout. The back shows larger areas of finish wear, some buckle rash, and some chips at the upper horn and neck joint. The treble side edge of the body shows extensive finish chipping and wear. The back of the neck is well worn and discolored. The metal hardware is lightly tarnished with age.

Serial Number: L48141

Tech Notes: The guitar plays well with low action and optimal neck relief. The frets are narrow and medium height with minimal play wear. The neck stamp reads "1NOV64B" and the serial number dates to 1964.
