The following specs were carefully collected and recorded by a skilled technician. For a more detailed description and questions regarding sound, feel, or cosmetic condition, please call to speak to one of our experts.



Summary

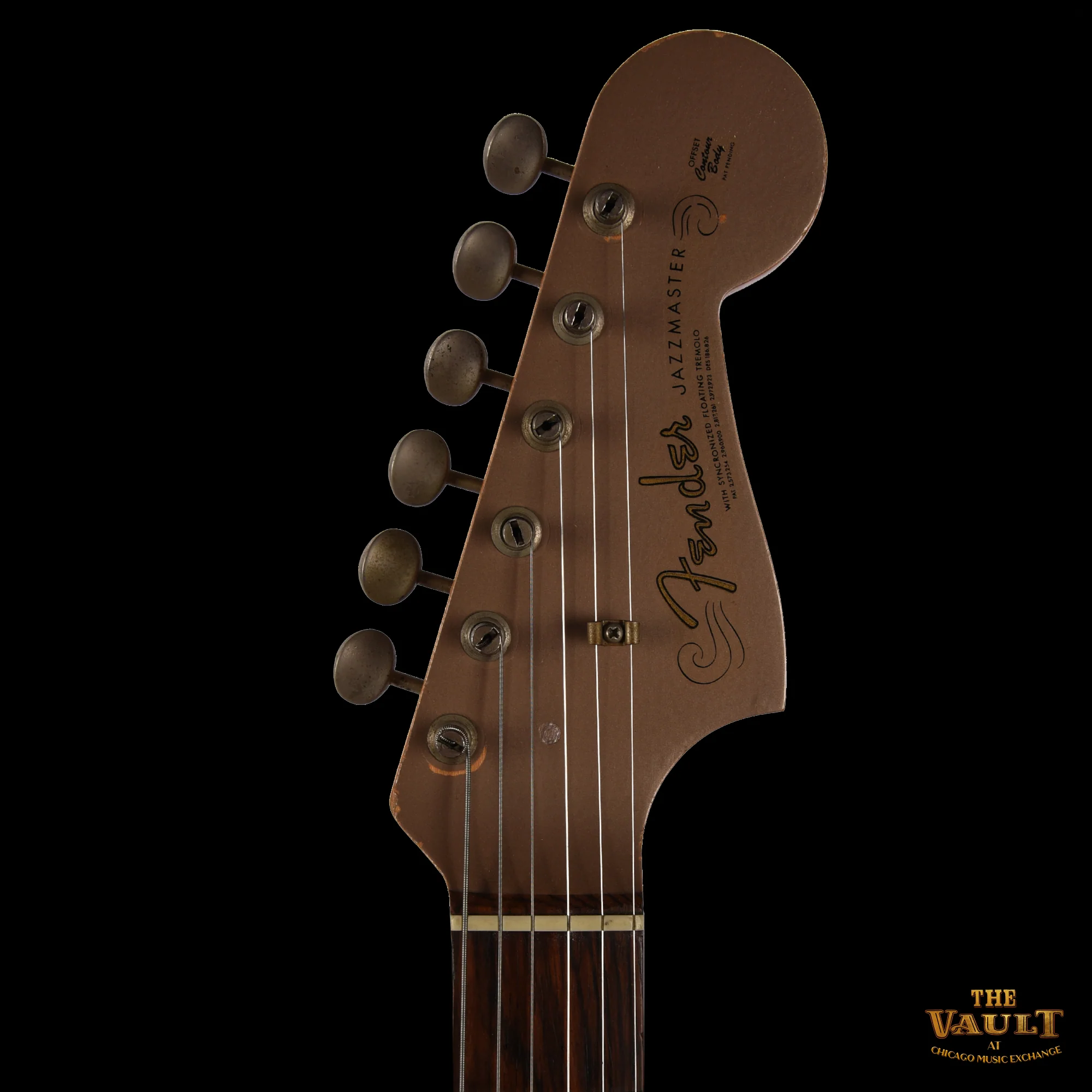

Finish: Original Shoreline Gold finish. There is a spot of minor finish touch up located on the face of the headstock where a second string tree was previously installed. The string tree was removed, the screw hole was filled, and then shoreline gold finish touch up was applied.

Body Material: Alder

Neck Material: Maple

Fingerboard Material: Brazilian Rosewood

Neck Profile: "C" Shape

Neck Thickness (IN): 1st. Fret: .79" & 12th. Fret: .96"

Fingerboard Radius: 7.25"

Nut Width: 1-5/8"

Scale Length: 25-½"

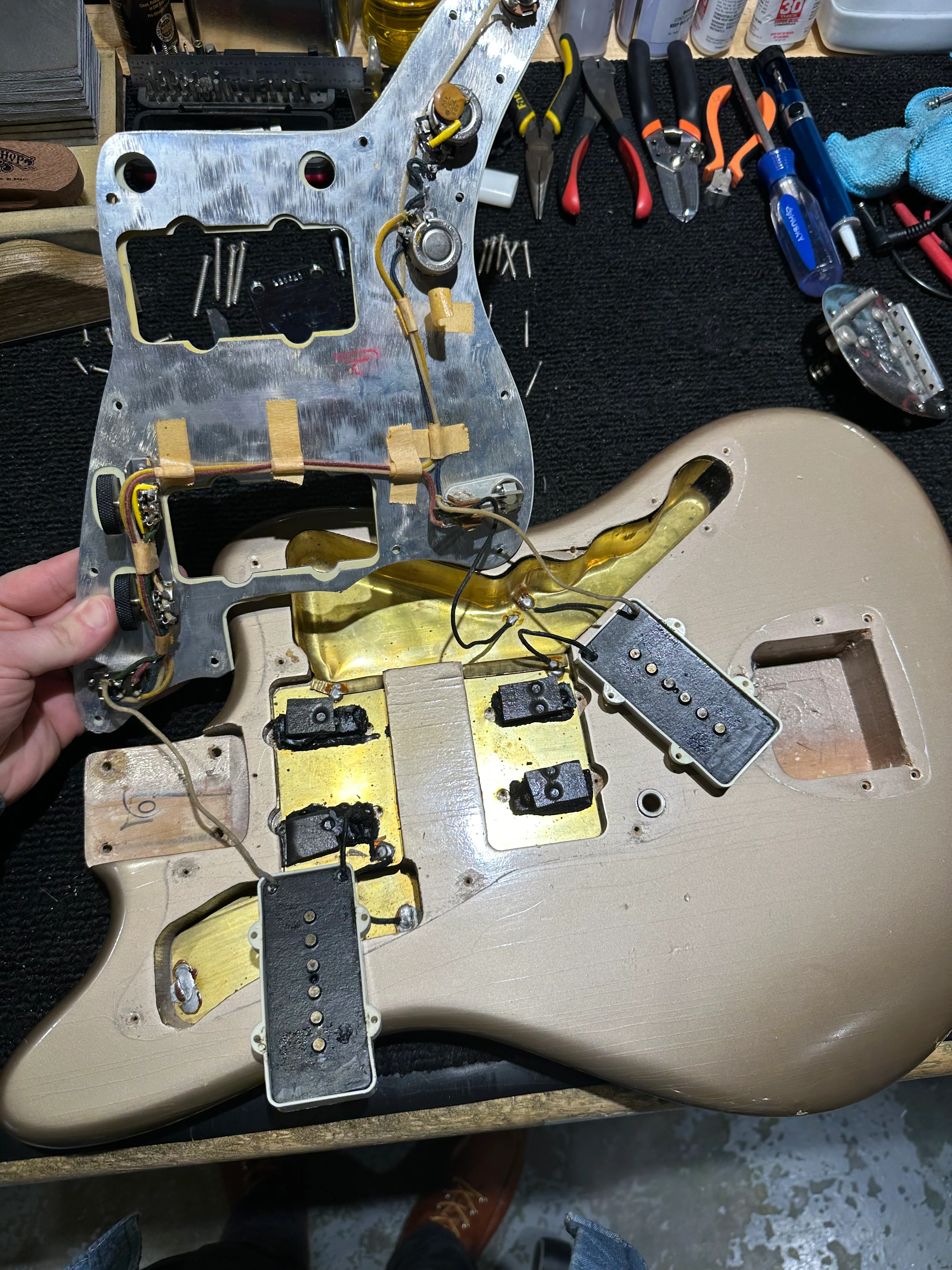

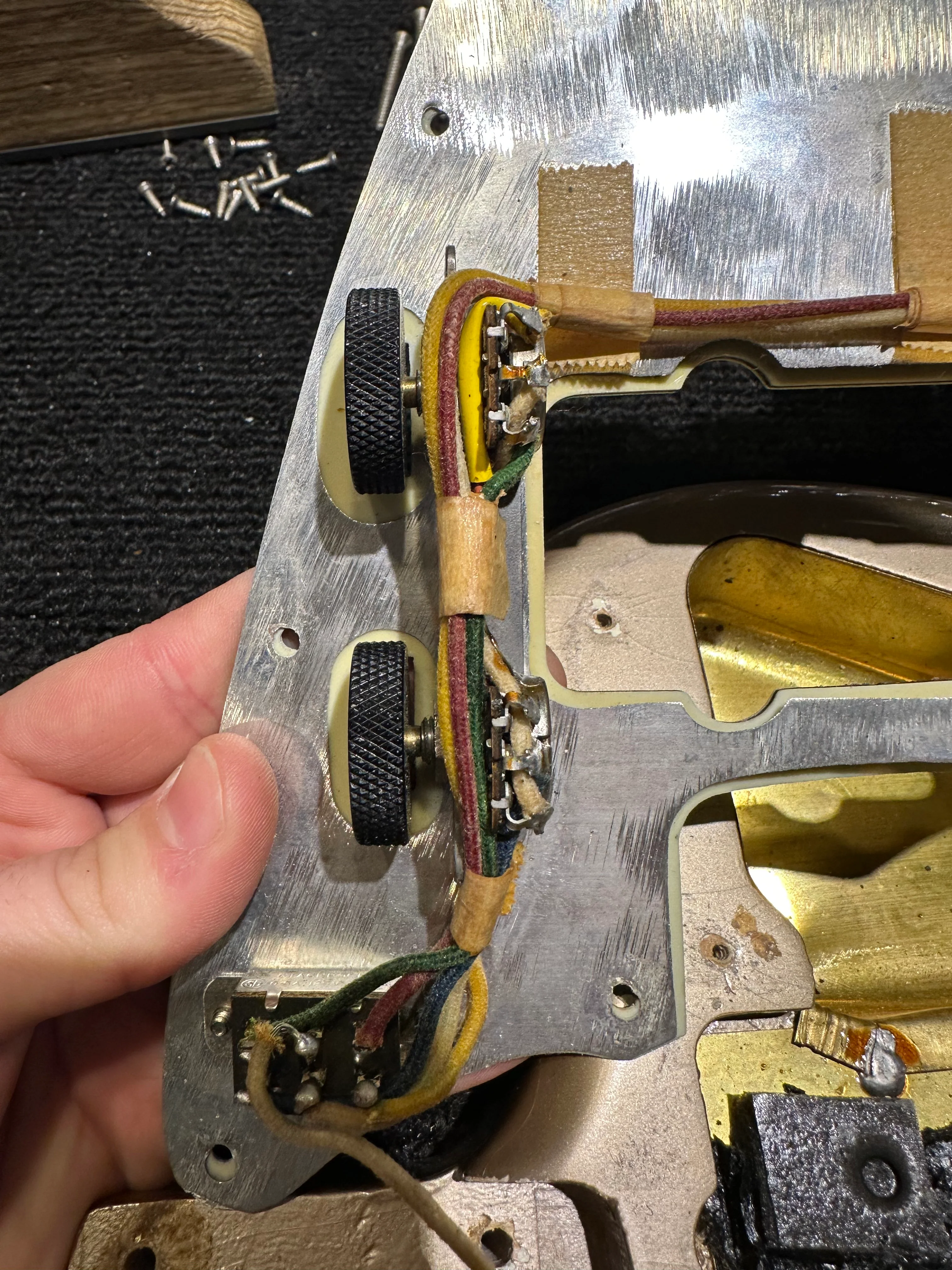

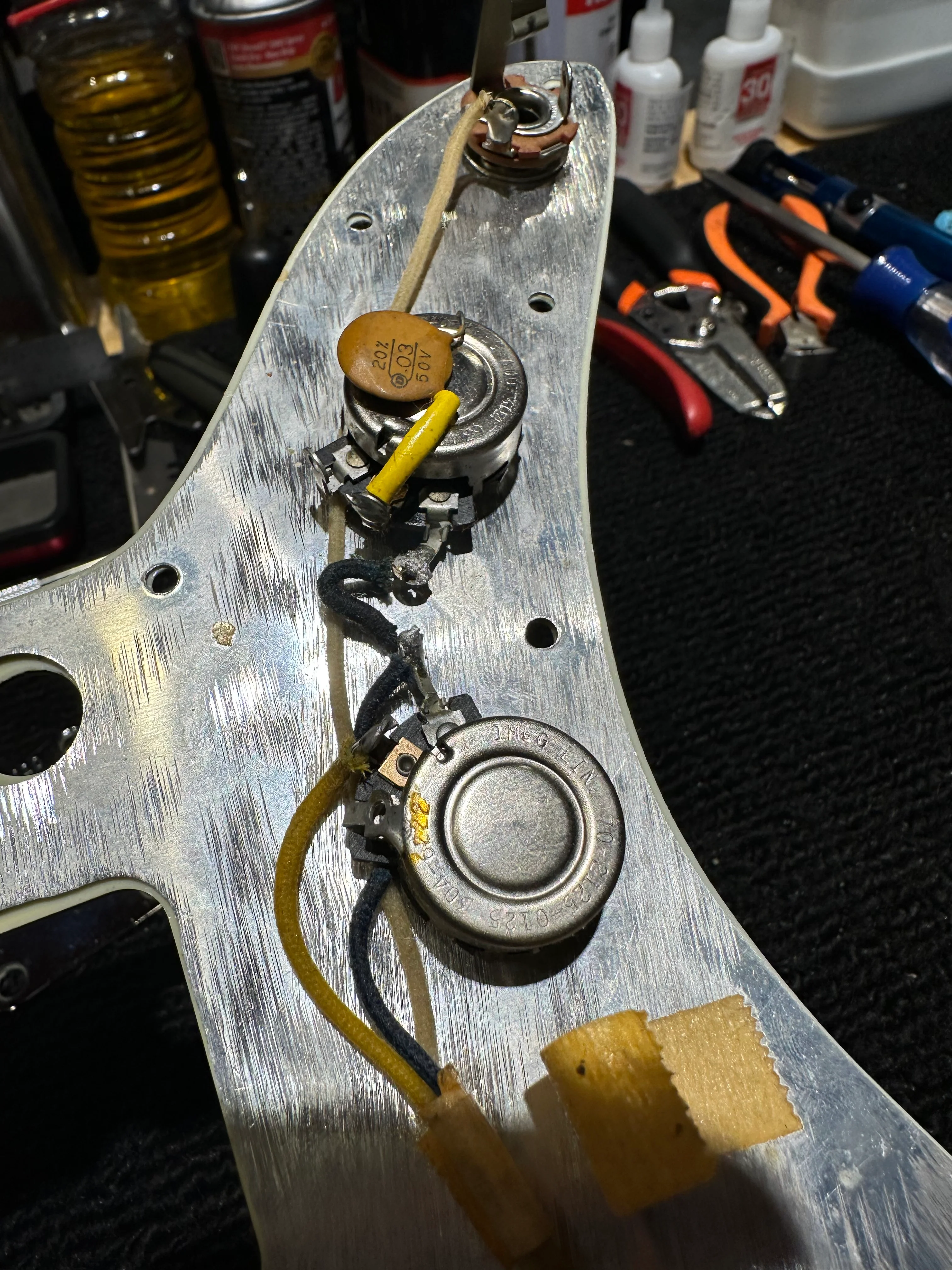

Electronics: Original Jazzmaster pickups with a two-position lead/rhythm circuit switch, three-position pickup selector, master volume and tone pots, and rhythm volume and tone pots. All electronics are original and are unaltered. The pots display 1962 dates.

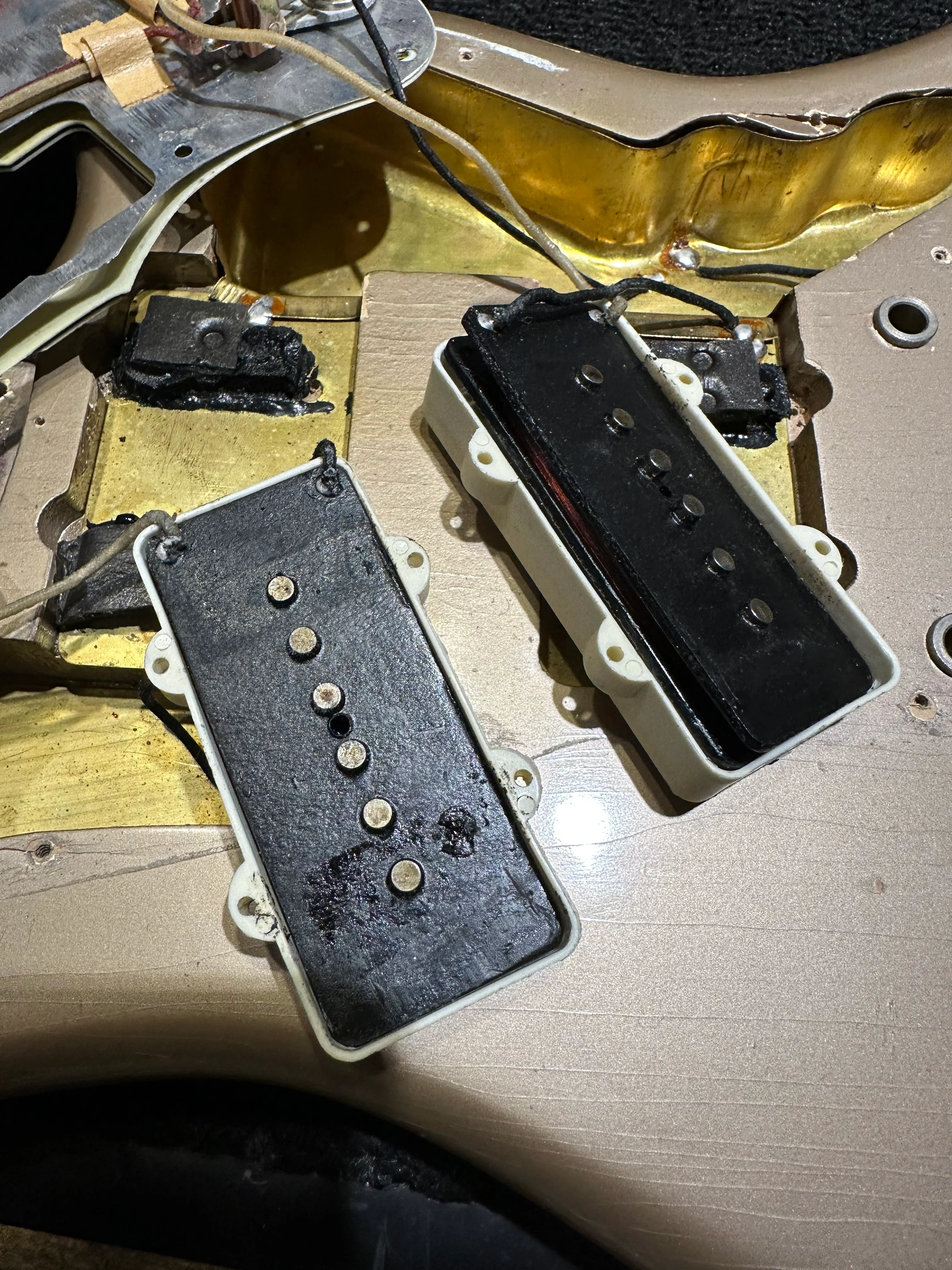

Pickup Measurements: Bridge: 8.7k Neck: 9.4k

Hardware: Original tuners, pickguard, knobs, strap buttons, bridge, and tremolo. The tremolo arm and bridge cover are included with the guitar. A thin shim has been placed underneath the nut.

Weight: 7lbs 14oz

Modifications / Repairs: -Finish touch up applied over a filled screw hole from an installation and removal of a second string tree. -Filled screws holes from a set of non-original tuners on the back of the headstock that have been removed and the original's reinstalled.

Case Details: Original Fender hardshell case. It is in good cosmetic condition with wear along the edges. Electrical tape has been wrapped around the handle.

Cosmetic Condition: This vintage Jazzmaster is in good cosmetic condition. There is checking, minor dings, dents, and scratches throughout. There are a few minor finish chips along the edges of the body. At one point, there was a second string tree installed for the D and G strings. The tree was removed and the screw hole was plugged and finish touch up was applied. On the back of the headstock, there are plugged holes from where an alternate set of tuners was installed. They have been removed and the originals reinstalled. As a result of the aftermarket tuners, the finish surrounding the circumference of the tuning pegs has chipped and outlines from the metal washers have been imprinted into the headstock.

Serial Number: L20410

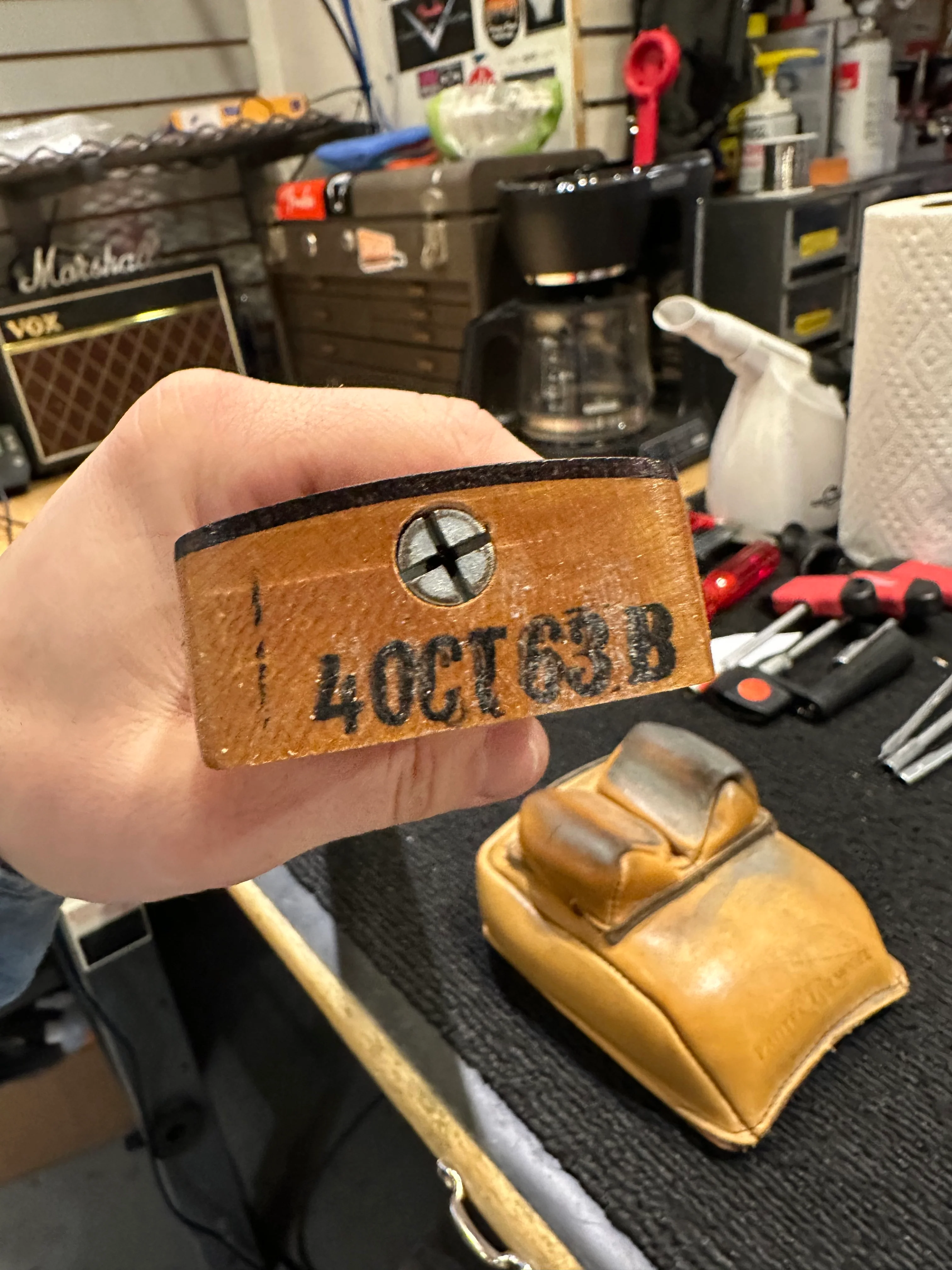

Tech Notes: This Jazzmaster plays well with low action and optimal neck relief. The truss rod is functional and has room to rotate in both directions. The original frets are thin and display minor wear for their age. Although the pot cods display 1962 dates and the neck stamp displays an "OCT. 63" stamp, this instrument is being dated to 1964 because of the serial number.
