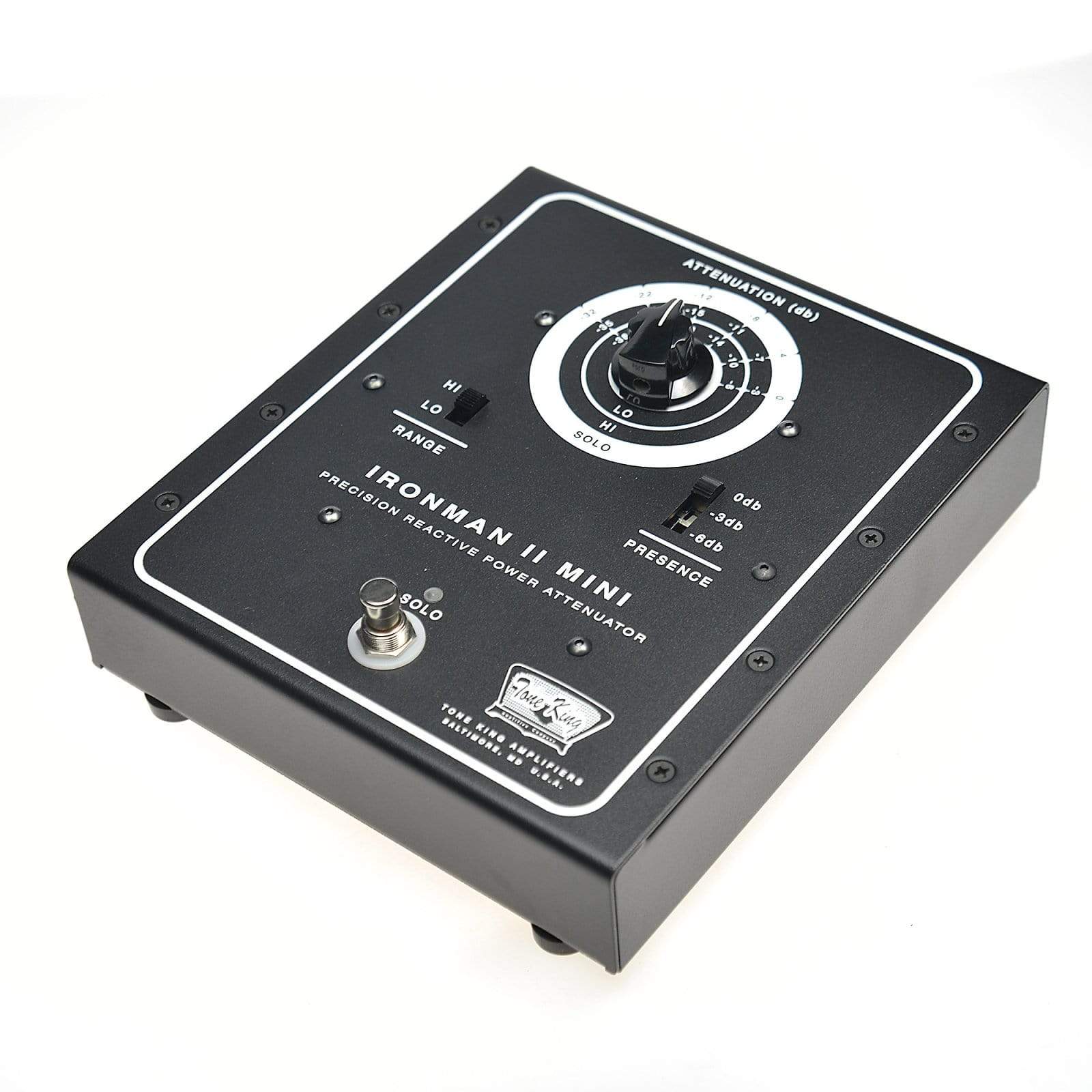

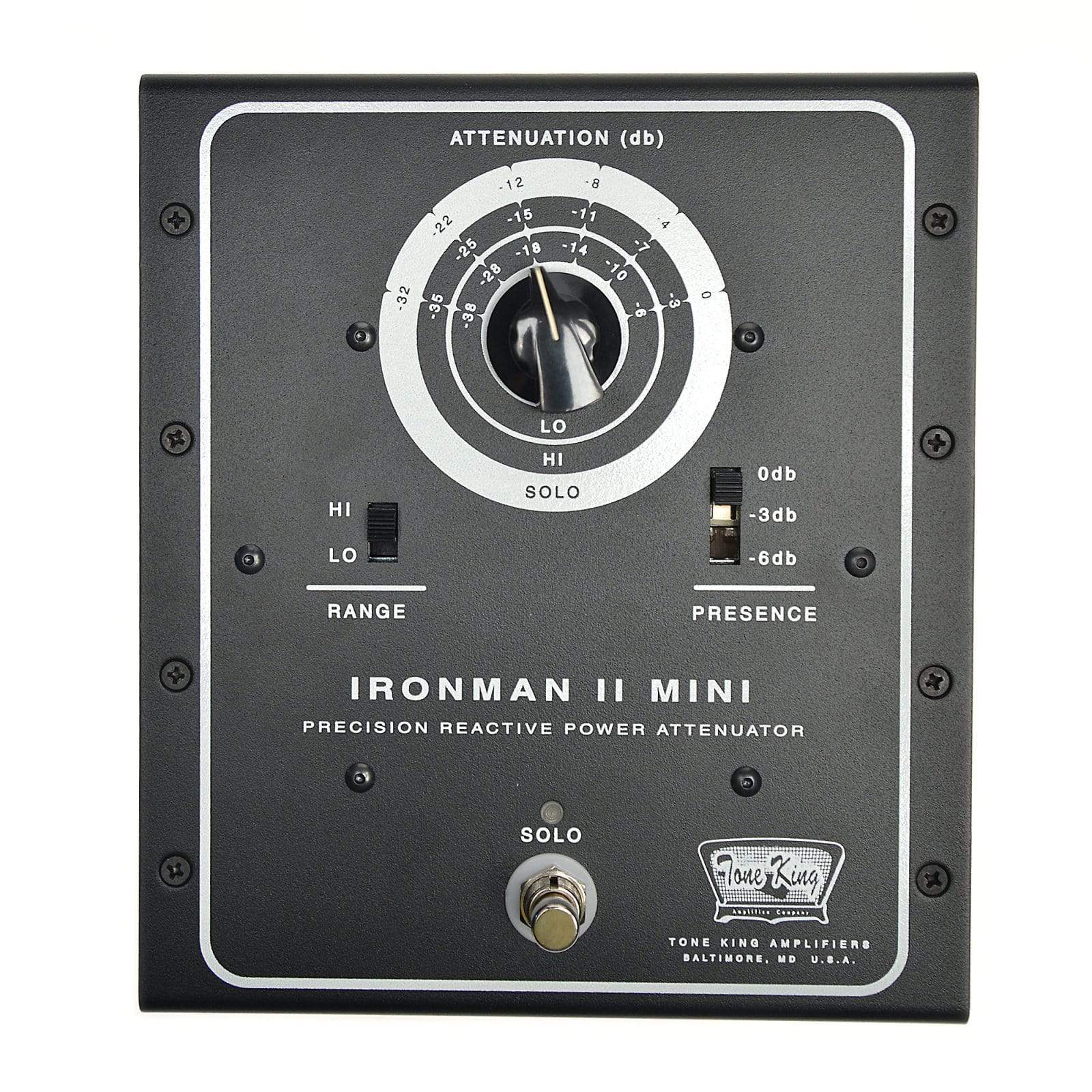

Tone King Iron Man II Mini Attenuator
The Ironman II Mini offers state-of-the-art attenuation technology in a conveniently sized package for amplifiers of 30W or less. A Tuned Reactive Load and Volume Compensation Circuitry deliver extremely transparent attenuation all the way down to bedroom volume. The Line-Out feature provides Re-Amping or D.I. capability. A unique Solo feature provides a selectable 3db/6db volume boost under footswitch control.
Input Impedance: Fixed Impedance; 8 Ohms only
Speaker Impedance: Fixed Impedance; 8 Ohms only
Attenuation Levels: A total of 18 distinct attenuation levels are available
Attenuation Dials: Selects between 6 different attenuation steps
SOLO Function: Selectable 3db/6db reduction in attenuation for solo volume boost
Range Switch: Selects between the HI and LO attenuation ranges, to control the attenuation level when the SOLO feature is inactive.
Line Out: Recording / D.I. output, impedance = 10K Ohms; level = -10dbu
LED Indicator: Indicates status of SOLO function
Power Source: Used for LED indicator only. Power supplied by either internal batteries (2 x AA cells) or external 9V source.
Dimensions: 7″W x 8″D x 1-5/8″T
Weight: 5 lbs.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Ironman II Mini offers state-of-the-art attenuation technology in a conveniently sized package for amplifiers of 30W or less. A Tuned Reactive Load and Volume Compensation Circuitry deliver extremely transparent attenuation all the way down to bedroom volume. The Line-Out feature provides Re-Amping or D.I. capability. A unique Solo feature provides a selectable 3db/6db volume boost under footswitch control.
Input Impedance: Fixed Impedance; 8 Ohms only
Speaker Impedance: Fixed Impedance; 8 Ohms only
Attenuation Levels: A total of 18 distinct attenuation levels are available
Attenuation Dials: Selects between 6 different attenuation steps
SOLO Function: Selectable 3db/6db reduction in attenuation for solo volume boost
Range Switch: Selects between the HI and LO attenuation ranges, to control the attenuation level when the SOLO feature is inactive.
Line Out: Recording / D.I. output, impedance = 10K Ohms; level = -10dbu
LED Indicator: Indicates status of SOLO function
Power Source: Used for LED indicator only. Power supplied by either internal batteries (2 x AA cells) or external 9V source.
Dimensions: 7″W x 8″D x 1-5/8″T
Weight: 5 lbs.
